Technical specifications:

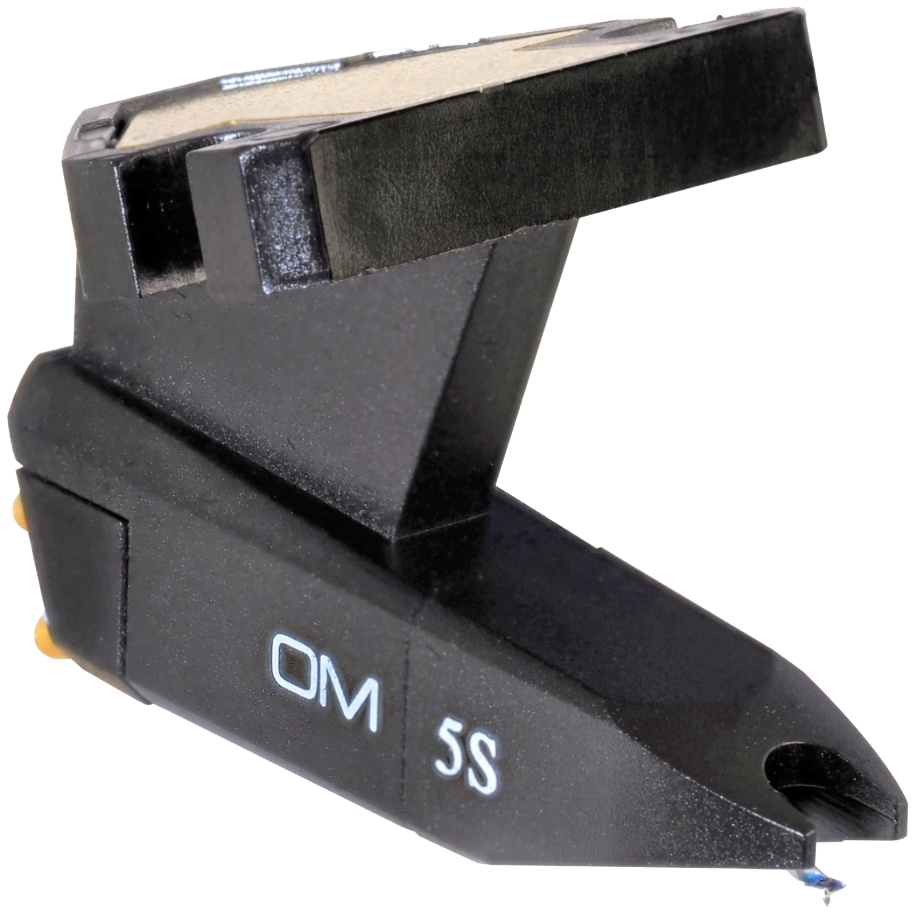

The replacement stylus OM 5S is recommended for OM cartridges.
- Frequency range at -3dB - 20-20.000 Hz
- Frequency response - 20-22.000 Hz
- Tracking ability at 315Hz at recommended tracking force *) - 60 µm
- Compliance, dynamic, lateral - 20 µm/mN
- Stylus type - Spherical
- Stylus tip radius - R 18 µm
- Tracking force range - 1.5-2.0 g (15-20 mN)
- Tracking force, recommended - 1.75 g (17,5 mN)
- Tracking angle - 20°
- Stylus colour - Black
- Recommended for OM 5S
