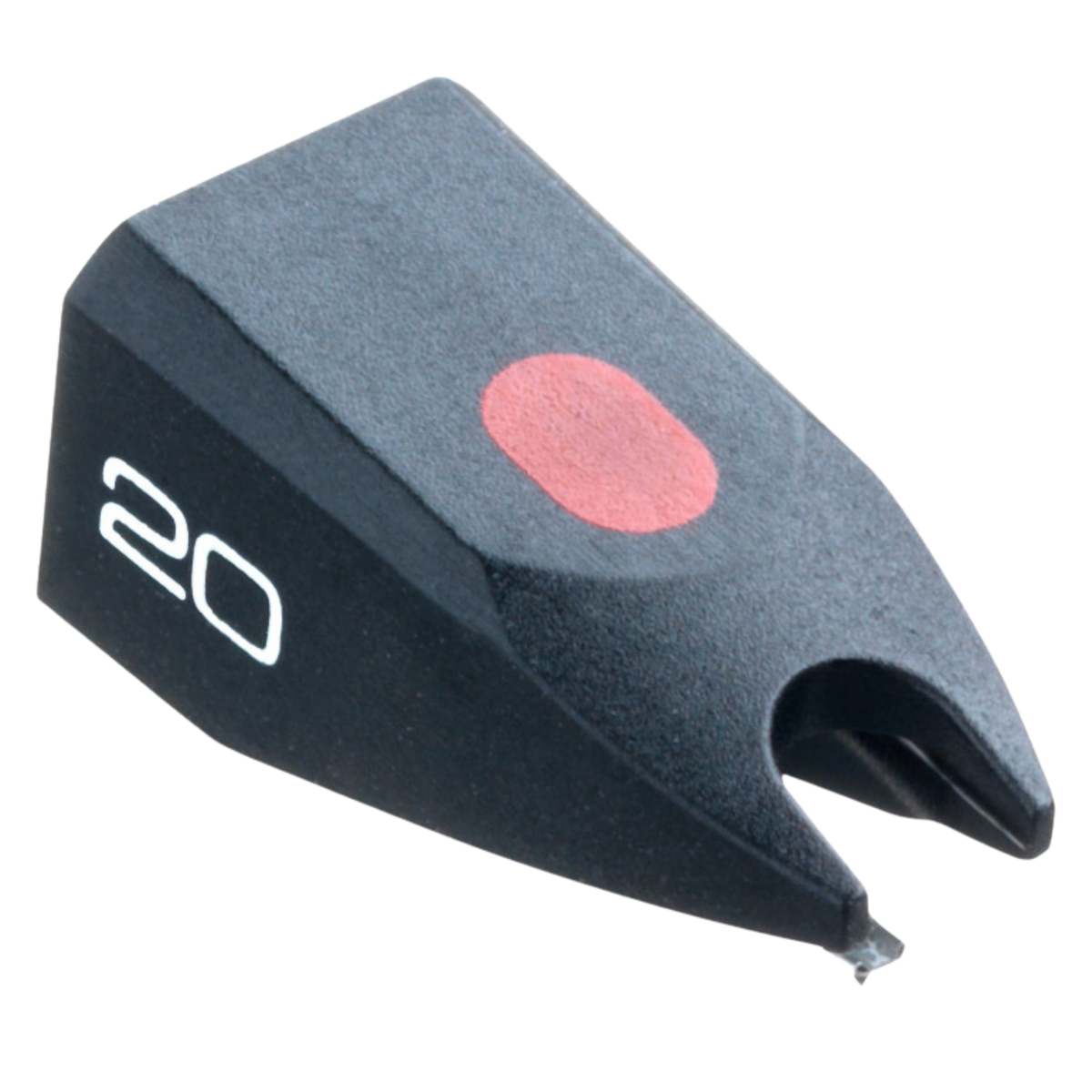

Ortofon Hi-Fi OM 20 Stylus
Moving Magnet Nude Elliptical Stylus
The Ortofon OM20 Stylus is an optional upgrade for your existing Ortofon OM cartridge. It features a stunning Nude Elliptical stylus profile.
You should upgrade your stylus when it starts to collect a lot of dust after each playback or when you notice some distortion and channel separation during listening.
We find with proper care, up to 1000 hours is possible without degradation of performance. To get more hours out of your next stylus, consider a Clean It stylus brush or Vinyl Clean compound to compliment your new stylus purchase.
$252.00
$279.00
Free shipping
1 day dispatch
Genuine Ortofon OM Replacement Stylus 20.
Technical Specifications:
- Frequency range - 20-27.000 Hz
- Frequency response - 20-20.000 Hz + 2 / - 3 dB
- Tracking ability at 315Hz at recommended tracking force *) - 80 µm
- Compliance, dynamic, lateral - 25 µm/mN
- Stylus type - Nude Elliptical
- Stylus tip radius - r/R 8/18 µm
- Equivalent stylus tip mass - 0,4 mg
- Tracking force range - 1.25-1.75 g (12.5-17.5 mN)
- Tracking force, recommended - 1.5 g (15 mN)
- Tracking angle - 20°
- Stylus colour - Black
- Recommended for following cartridges: Super OM 20, OM 20, OMP 20, OMB 20, LM 20, Concorde 20, LM 20H, TM 20U, TM 20H
