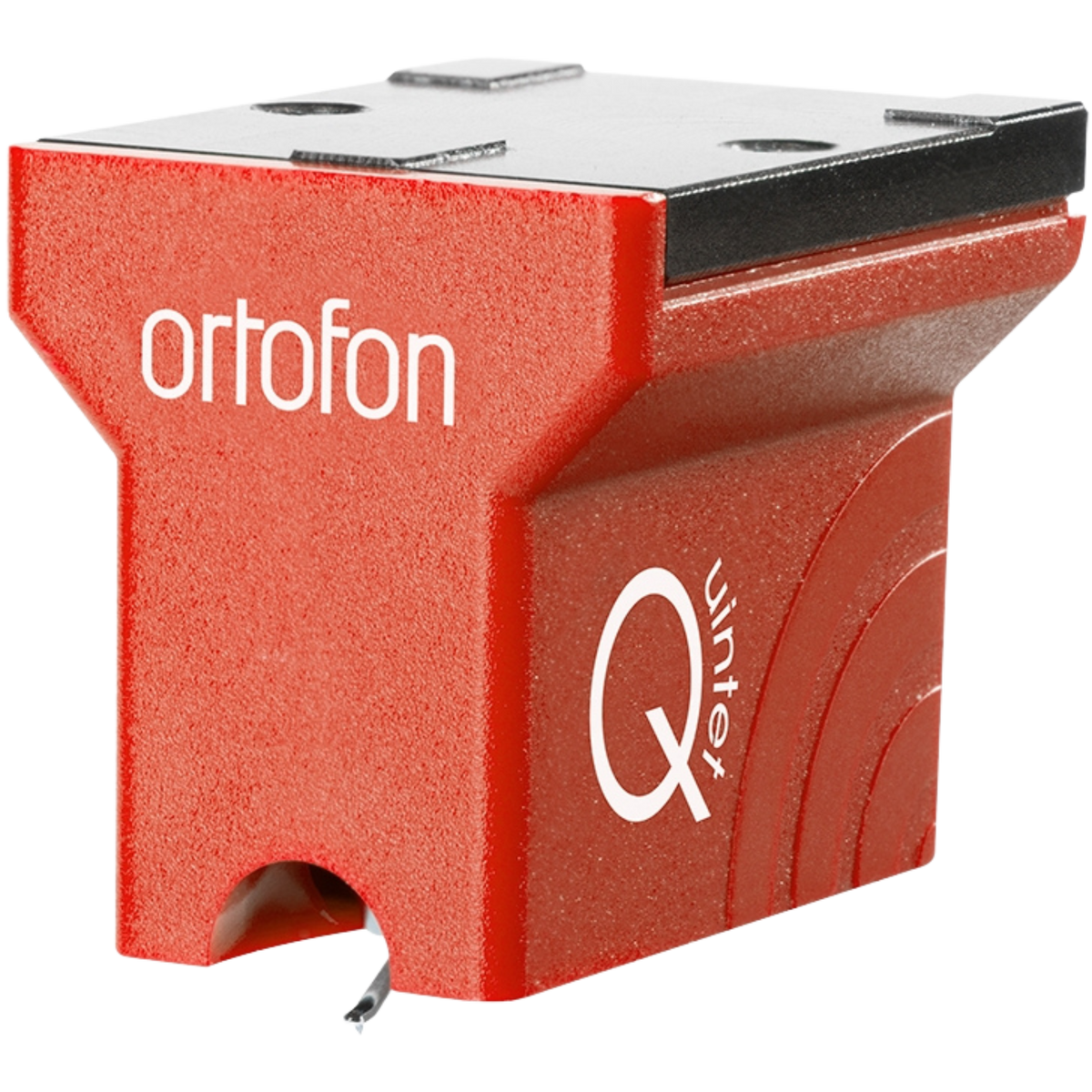

Ortofon Hi-Fi Quintet Red
Moving Coil CartridgeEnter the Exclusive world of Ortofon’s famous moving coil sound! The Quintet Red is a perfect introduction to the world of Ortofon moving coils. It features an Elliptical diamond which is cut and polished to Ortofon’s high standards.
This entry-level MC cartridge has a very high price-to-performance ratio and is the perfect all-rounder for the newcomers to the world of Moving Coil cartridges.
Choose the option to suit your needs
Technical Specifications
- Output voltage at 1 kHz 5 cm/sec | 0.5 mV
- Channel balance | 1.5 dB
- Channel separation at 1 kHz | 21 dB
- Channel separation at 15 kHz | 14 dB
- Frequency range at -3 dB | 20 - 25,000Hz
- Frequency response 20-20,000 Hz | +/-2.5 dB
- Tracking ability at 315 Hz at recommended tracking force | 65 μm
- Compliance, dynamic, lateral | 15 μm/mN
- Stylus type | Elliptical
- Stylus tip radius | r/R 8/18 μm
- Tracking force range | 2.1-2.5 g (21-25 mN)
- Tracking force (recommended) | 2.3 g (23 mN)
- Tracking angle | 20°
- Internal impedance, DC resistance | 7 Ohm
- Recommended load impedance | 20 Ohm
- Cartridge body material | ABS/Aluminium
- Coil wire material | Copper
- Cartridge colour | Red
- Cartridge weight | 9 g
