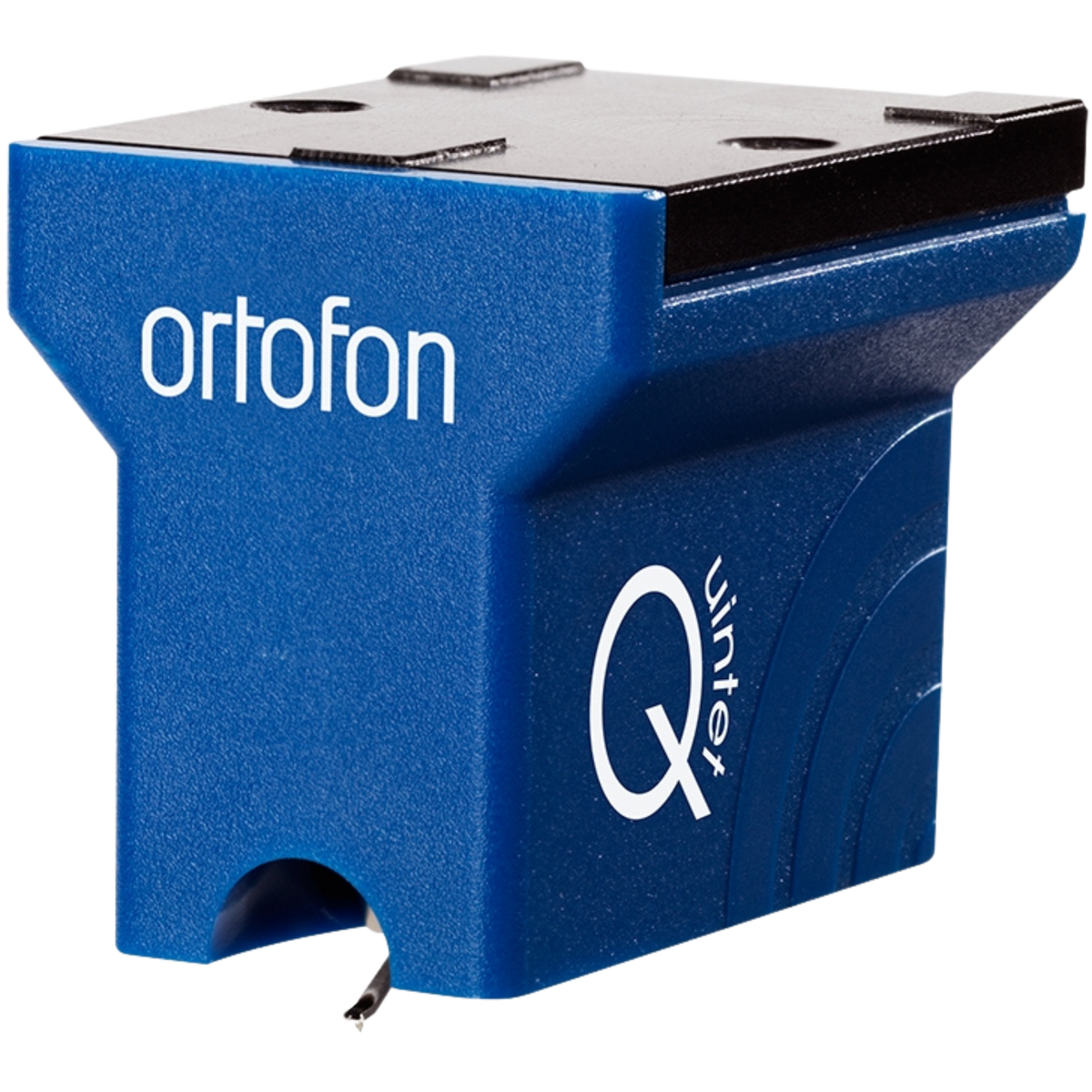

Ortofon Hi-Fi Quintet Blue
Moving Coil CartridgeThe Quintet Blue is a very homogeneous cartridge whose sound reproduction will tend toward a more smooth presentation compared to Quintet Red and moderate dynamic strength compared to Quintet Bronze. It features a Nude Elliptical diamond mounted on an aluminium cantilever.
The Quintet Blue will bring more space, depth and detail to your sound. The cartridge is a fantastic choice for any kind of music, especially rhythmic genres.
Choose the option to suit your needs
Technical Specifications
- Output voltage at 1 kHz 5 cm/sec | 0.5 mV
- Channel balance | 1.5 dB
- Channel separation at 1 kHz | 21 dB
- Channel separation at 15 kHz | 14 dB
- Frequency range at -3 dB | 20-25,000 Hz
- Frequency response 20-20,000 Hz | +/-2.5 dB
- Tracking ability at 315 Hz at recommended tracking force | 70 μm
- Compliance, dynamic, lateral | 15 μm/mN
- Stylus type | Nude Elliptical
- Stylus tip radius | r/R 8/18 μm
- Tracking force range | 2.1-2.5 g (21-25 mN)
- Tracking force (recommended) | 2.3 g (23 mN)
- Tracking angle | 20°
- Internal impedance, DC resistance | 7 Ohm
- Recommended load impedance | 20 Ohm
- Cartridge body material | ABS/Aluminium
- Coil wire material | Pure 4-nines copper
- Cartridge colour | Blue
- Cartridge weight | 9 g
