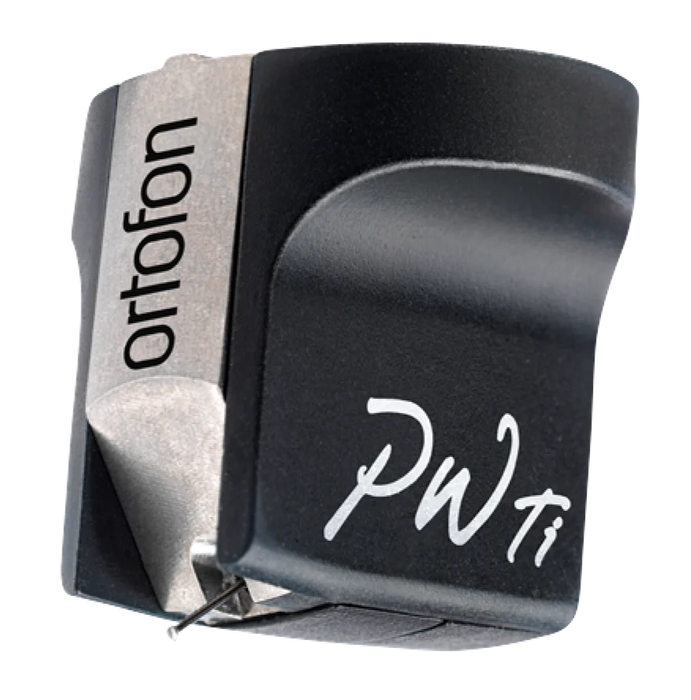

Ortofon Hi-Fi MC Windfeld Ti
Moving Coil CartridgeThe MC Windfeld Ti has gone to the next level by reducing unwanted vibrations and increasing the dynamic capability of the cartridge.
Those who choose to adopt the MC Windfeld Ti will experience the lifelike, dynamic and open sound, with exceedingly clear midrange. The MC Windfeld Ti remains extremely musical while paying close attention to micro dynamic details, with its delicate, but also analytical nature.
Accuracy level
Ortofon's extensive knowledge of vibration properties, characteristics in different shapes and materials, competences in magnetism, mechanical design, and new technologies has been applied for optimisation of the MC Windfeld model.
When combined with Ortofon’s world-class knowledge in analog sound reproduction, the MC Windfeld Ti will undoubtedly provide sound which is literally unsurpassed and simply has to be experienced.
Specifications
- Channel balance at 1 kHz: 0.5 dB
- Output voltage at 1 kHz, 5cm/sec: 0.2 mV
- Channel separation at 1 kHz: 25 dB
- Frequency response 20 Hz - 20 kHz: +2 dB/- 1 dB
- Tracking ability at 315 Hz: 90 μm
- Compliance, dynamic, lateral: 13 μm/mN
- Cantilever material: Boron
- Stylus type: Special polished Nude Ortofon Replicant 100
- Stylus tip radius: r/R 5/100 μm
- Tracking force range: 2.0-2.5 g
- Tracking force, recommended: 2.3 g
- Tracking angle: 23°
- Internal impedance, DC resistance: 6Ω
- Recommended load impedance: > 10 Ohm
- Coil wire material: Aucurum
- Cartridge body material: SLM Titanium and Stainless Steel
- Cartridge colour: Titanium/Black
- Cartridge weight: 11 g
