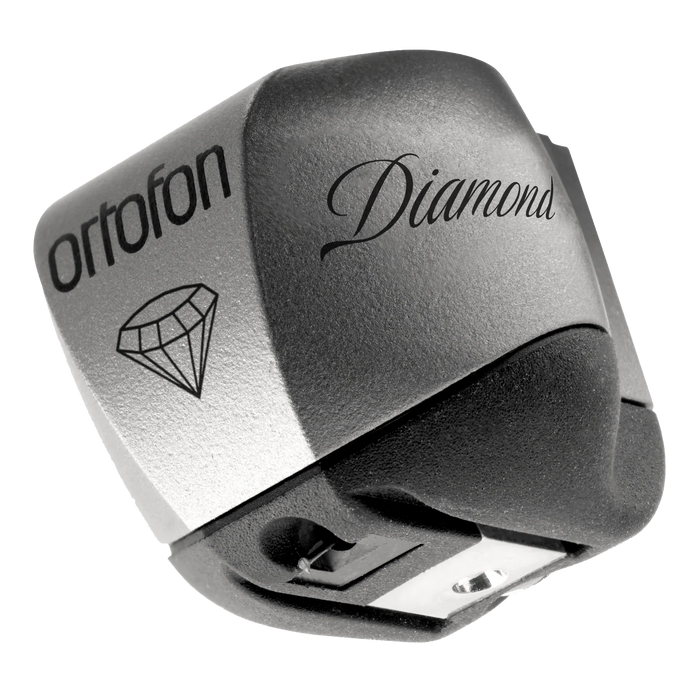

Ortofon Hi-Fi MC Diamond
Moving Coil CartridgeThe MC Diamond delivers the state-of-the-art technology, unmatched performance, and unparalleled accuracy you expect from our greatest phonograph cartridge ever made.
Accuracy level
The MC Diamond provides an entirely new level of experience for audiophiles. Featuring a titanium body, optimiaed magnet system, diamond cantilever, and a new rubber suspension, the MC Diamond provides an entirely new level of experience for audiophiles.
“This is recorded music like you’ve never heard it before. The most authentic vinyl experience in the world.” - Leif Johannsen, Ortofon’s Chief Officer of Acoustics and Research.
DREAM BIGGER PRICE
Mount
Specifications
- Channel balance at 1 kHz: 0.5 dB
- Output voltage at 1 kHz, 5cm/sec: 0.2 mV
- Channel separation at 1 kHz: 25 dB
- Frequency response 20 Hz - 20 kHz: +/- 2 dB
- Tracking ability at 315 Hz: 80 µm
- Compliance, dynamic, lateral: 11 µm/mN
- Cantilever material: Diamond
- Stylus type: Special polished Nude Ortofon Replicant 100
- Stylus tip radius: r/R 5/100 µm
- Tracking force range: 2.5-2.8 g (25-28 mN)
- Tracking force, recommended: 2.6 g (26 mN)
- Tracking angle: 23°
- Internal impedance, DC resistance: 6 Ohm
- Recommended load impedance: > 10 Ohm
- Coil wire material: Ultra pure oxygen free copper
- Cartridge body material: SLM Titanium
- Cartridge colour: Silver/Black
- Cartridge weight: 17.5 g
