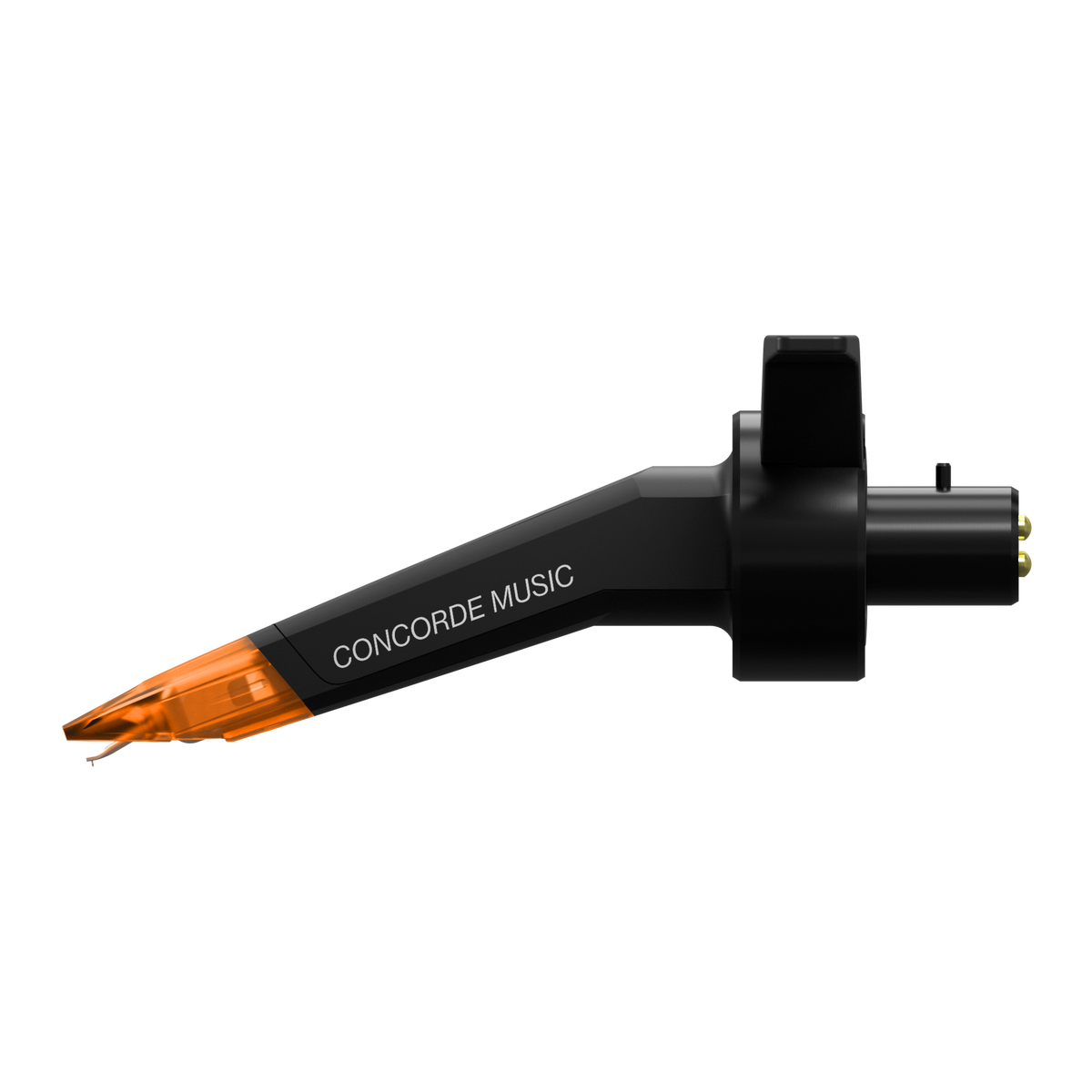

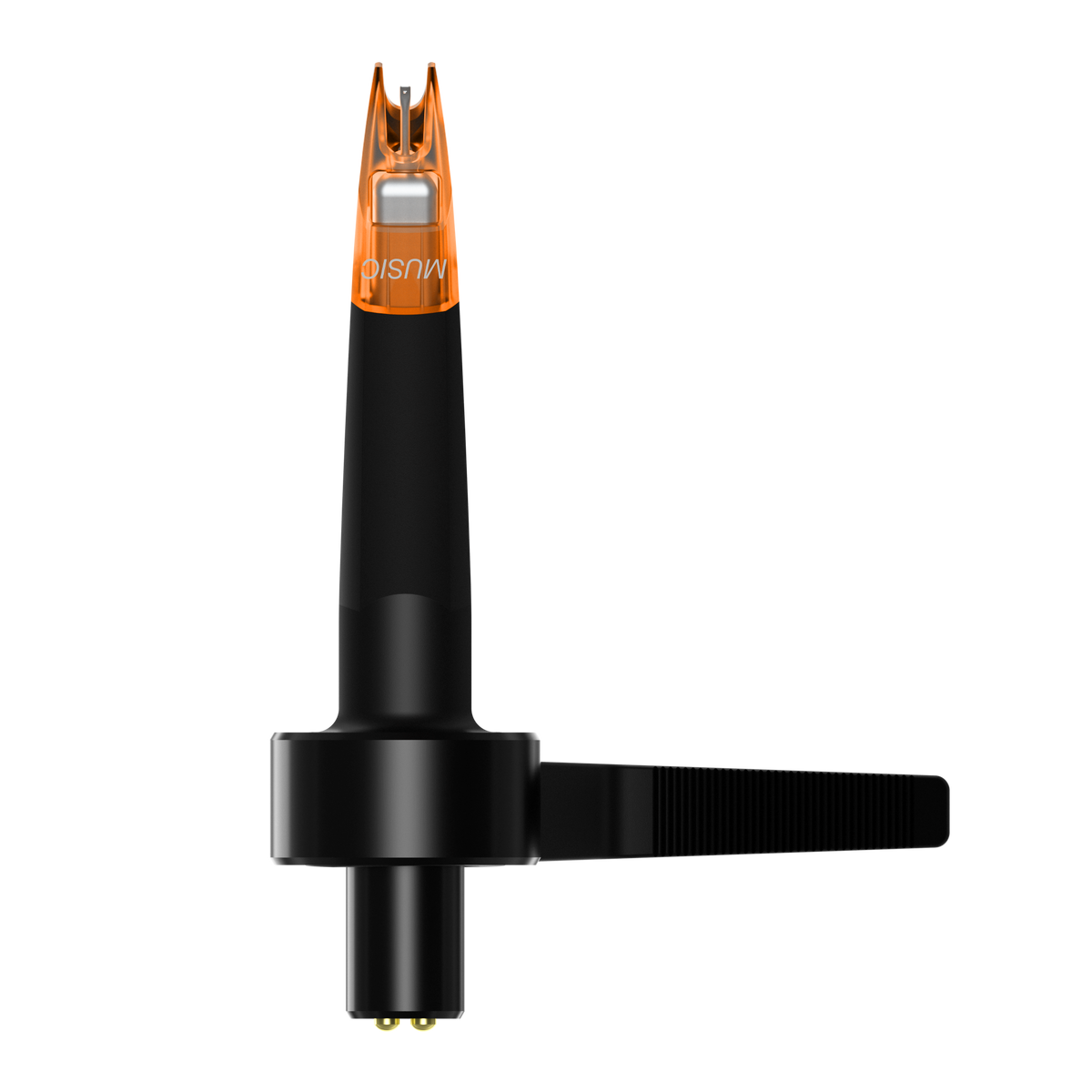

Ortofon Hi-Fi Concorde Music Bronze
Moving Magnet CartridgeConcorde Music cartridges seamlessly integrate with all turntables featuring a bayonet tonearm, ensuring easy and straightforward installation – no tools required, making it hassle-free and convenient for all users. All Concorde Music styli are compatible with every Concorde Music cartridge. An upgrade path is possible throughout the entire series of Concorde Music cartridges, enabling upgrades from Concorde Music Red to Black LVB 250.
The Concorde Music Bronze features a Nude Fine Line stylus on an on Aluminium cantilever.
SUMMER SALE PRICE
Technical Specifications
- Channel balance at 1 kHz: 1 dB
- Output voltage at 1 kHz, 5cm/sec: 6mV
- Channel separation at 1 kHz: 26 dB
- Channel separation at 15 kHz: 17 dB
- Frequency response 20 Hz - 20 kHz: +2 / 0 dB
- Tracking ability at 315Hz at recommended tracking force: 80 µm
- Compliance, dynamic, lateral: 15 µm/mN
- Stylus type: Nude Fine Line diamond on Aluminium cantilever
- Stylus tip radius: r/R 8/40 µm
- Tracking force, recommended: 1.8 g
- Tracking angle: 20°
- Cartridge weight: 18 g
- Recommended load resistance: 47 kΩ
- Recommended load capacitance: 150-300 pF
