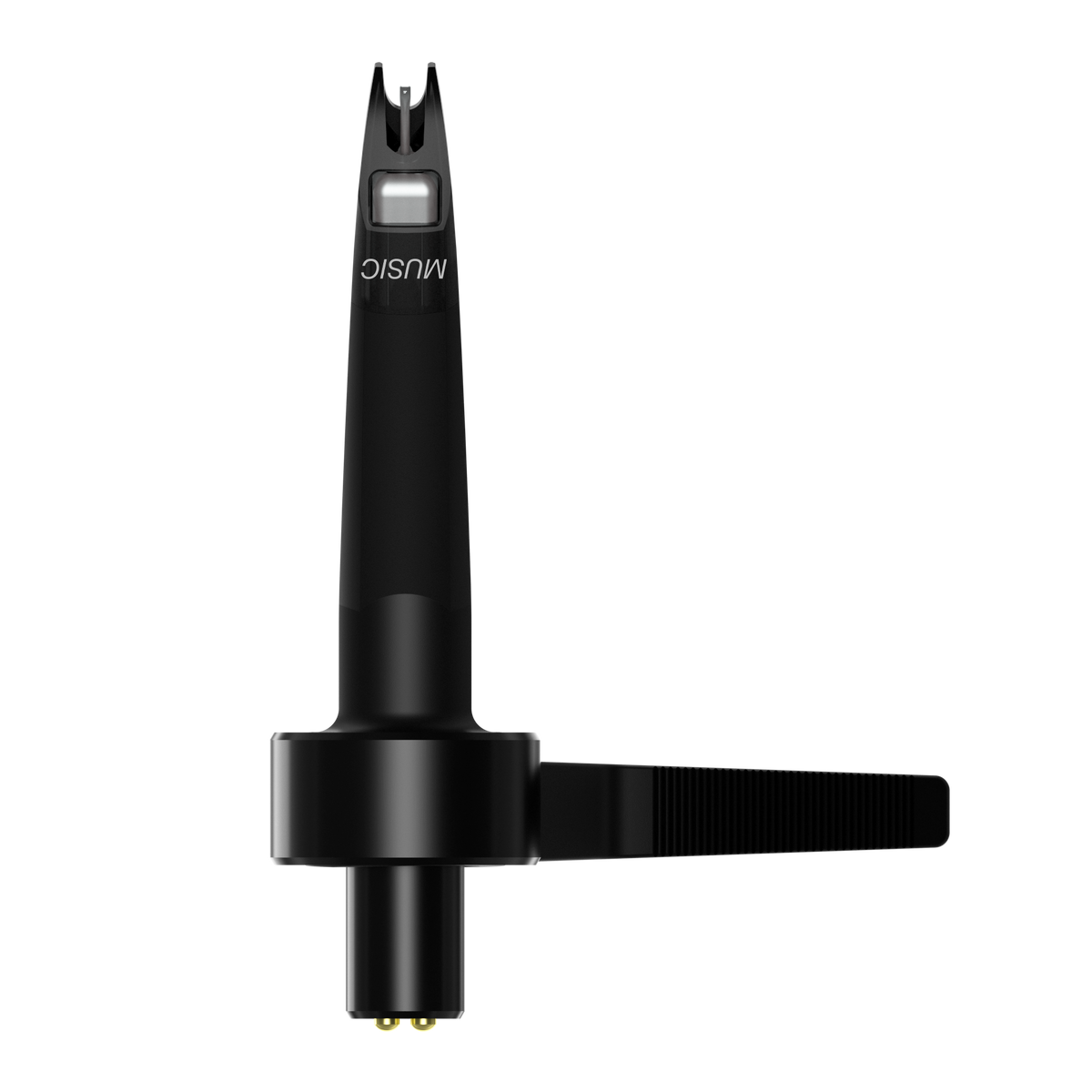

Ortofon Hi-Fi Concorde Music Black

Moving Magnet Cartridge

Concorde Music cartridges seamlessly integrate with all turntables featuring a bayonet tonearm, ensuring easy and straightforward installation – no tools required, making it hassle-free and convenient for all users. All Concorde Music styli are compatible with every Concorde Music cartridge. An upgrade path is possible throughout the entire series of Concorde Music cartridges, enabling upgrades from Concorde Music Red to Black LVB 250.

The Concorde Music Black features a Nude Shibata stylus on an Aluminium cantilever.

SUMMER SALE PRICE
In stock
Free Shipping Ships from Melbourne
Contact us for re-stock date
Arriving 18th September
Shop in store
This order will ship via AusPost or TNT for free.

Technical Specifications

  • Channel balance at 1 kHz: 1 dB
  • Output voltage at 1 kHz, 5cm/sec: 6mV
  • Channel separation at 1 kHz: 26 dB
  • Channel separation at 15 kHz: 18 dB
  • Frequency response 20 Hz - 20 kHz: +2 / 0 dB
  • Tracking ability at 315Hz at recommended tracking force: 80 µm
  • Compliance, dynamic, lateral: 15 µm/mN
  • Stylus type: Shibata diamond on Aluminium cantilever
  • Stylus tip radius: r/R 6/50 µm
  • Tracking force, recommended: 1.8 g
  • Tracking angle: 20°
  • Cartridge weight: 18 g
  • Recommended load resistance: 47 kΩ
  • Recommended load capacitance: 150-300 pF
