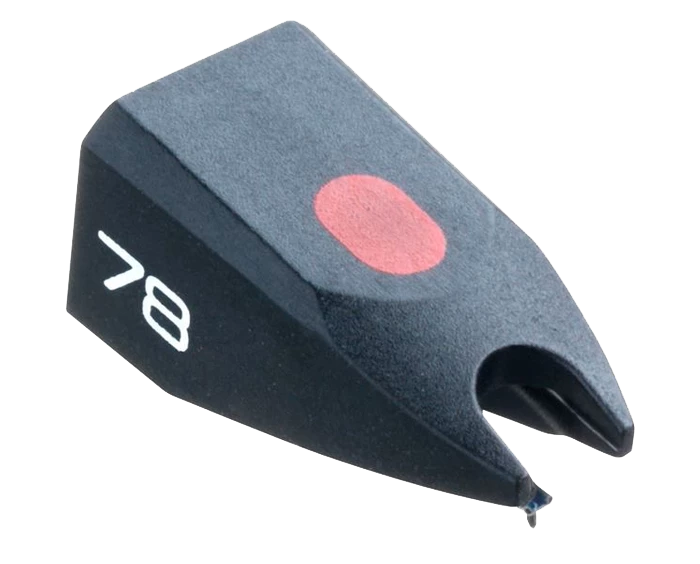

Ortofon Hi-Fi OM78 Stylus
Moving Magnet 78 Stylus for OM SeriesThe Ortofon OM78 Stylus is a replacement for your existing Ortofon OM cartridge. It features a stylus profile suitable for playing wider 78 RPM shellac record grooves.
You should upgrade your stylus when it starts to collect a lot of dust after each playback or when you notice some distortion and channel separation during listening.
We find with proper care, up to 1000 hours is possible without degradation of performance. To get more hours out of your next stylus, consider a Clean It stylus brush or Vinyl Clean compound to compliment your new stylus purchase.
BIG PRO-JECT SALE PRICE - STOCK IS LIMITED
Genuine Replacement Stylus for Ortofon Cartridges.
Technical Specifications:
- Frequency range - 20-15.000 Hz
- Frequency response - 20-12.000 Hz + 2 / - 3 dB
- Tracking ability at 315Hz at recommended tracking force *) - 60 µm
- Compliance, dynamic, lateral - 15 µm/mN
- Stylus type - Spherical
- Stylus tip radius - 65µm
- Equivalent stylus tip mass - 0,5 mg
- Tracking force range - 1.75-2.25 g (17.5-22.5 mN)
- Tracking force, recommended - 2.0 g (20 mN)
- Tracking angle - 20°
- Stylus colour - Black
Recommended for following cartridges: all Super OM, OM, OMB, OMP, TM, Concorde STD cartridges for playing 78 r.p.m. records
